The Combination Output Interface (COI) combines multiple input and output devices in
to one module, offering a compact and intelligent replacement for traditional DC fuse
boxes and circuit breaker panels with digital switching technology.

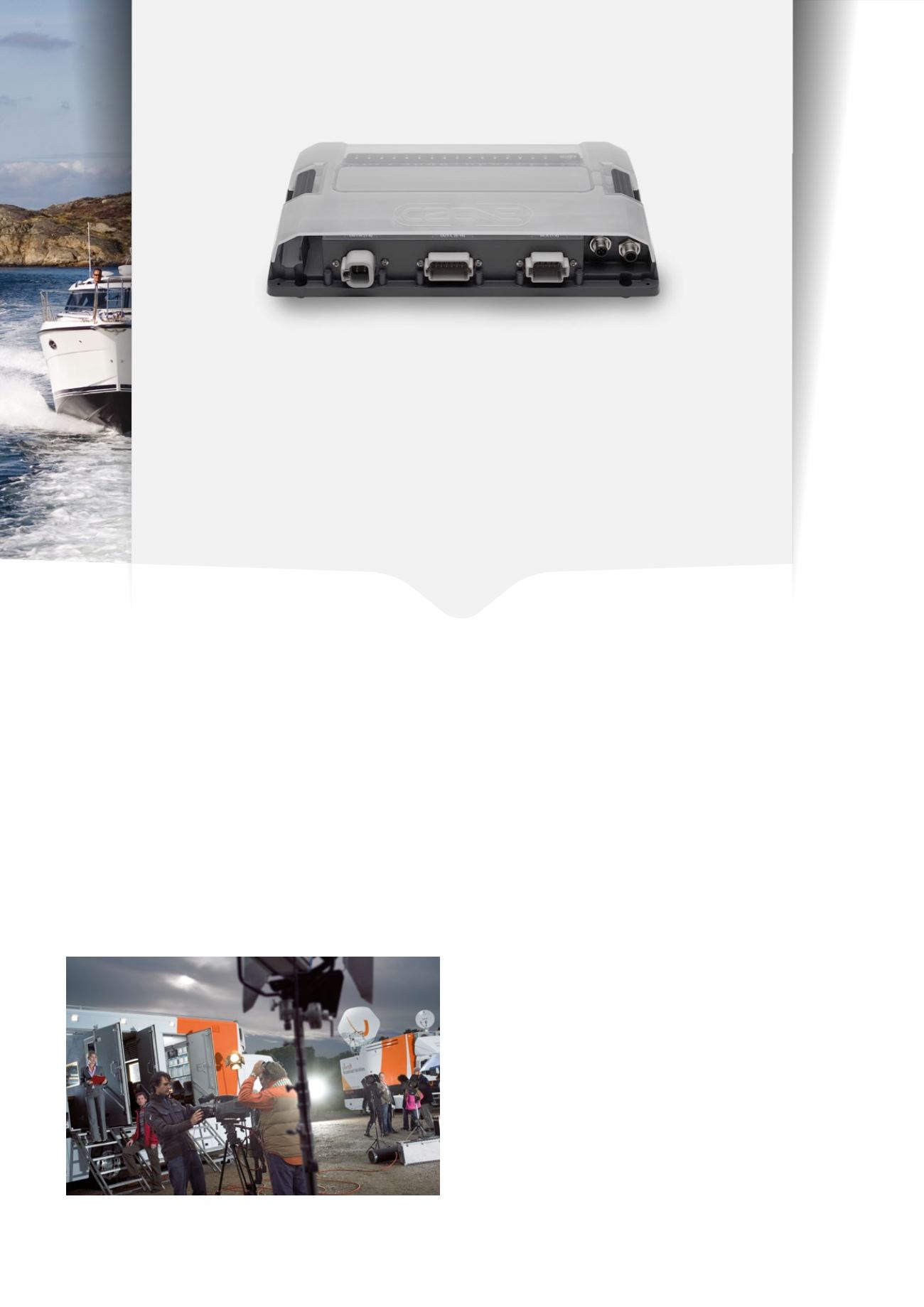

Combination
Output Interface (COI)
The complete CZone
®
system in a box!
Digital switching systems just became more cost effective and
easier to install, with the new CZone® Combination Output
Interface (COI). This one box replaces up to five separate units,
with convenient Deutsch connectors and IPx5 water resistance,
providing a complete CZone system for smaller applications.
The COI’s high continuous power output (150 amps), plus space,
installation time and cost savings also make it the perfect
building block for larger systems.
Features
n
High density 30 channel module minimizes installation,
interconnections and footprint, while delivering best value
per circuit.
n
Full mechanical fuse protection plus bypass on all circuits as
required by ABYC/CE.
n
Industry standard Deutsch connectors provide fast, plug &
play installation.
n
Optional cable cover offers improved aesthetics and greater
mounting flexibility.
n
Proven, rugged CZone design includes IPX5 water ingress
protection and NMEA 2000 certification
n
High power bilge pump channels allow manual control plus
‘pump running’ feedback from a single channel – without
additional wiring.
n
USB port provides easy system update from USB flash drive.
Mastervolt offers a Combination Output Interface with
connectors, as well as a Combination Output Interface without
connectors, that is ideally suited for refit or service purposes.
