Quick access and overview
Partnered with either a dedicated CZone display, or with a Multi
Function Display from one of our industry leading integration partners
(B&G, Furuno, Garmin, Lowrance, Simrad), the Combination Output
Interface heralds a new era in providing simple, intuitive control over the
increasingly complex systems found on today’s applications.

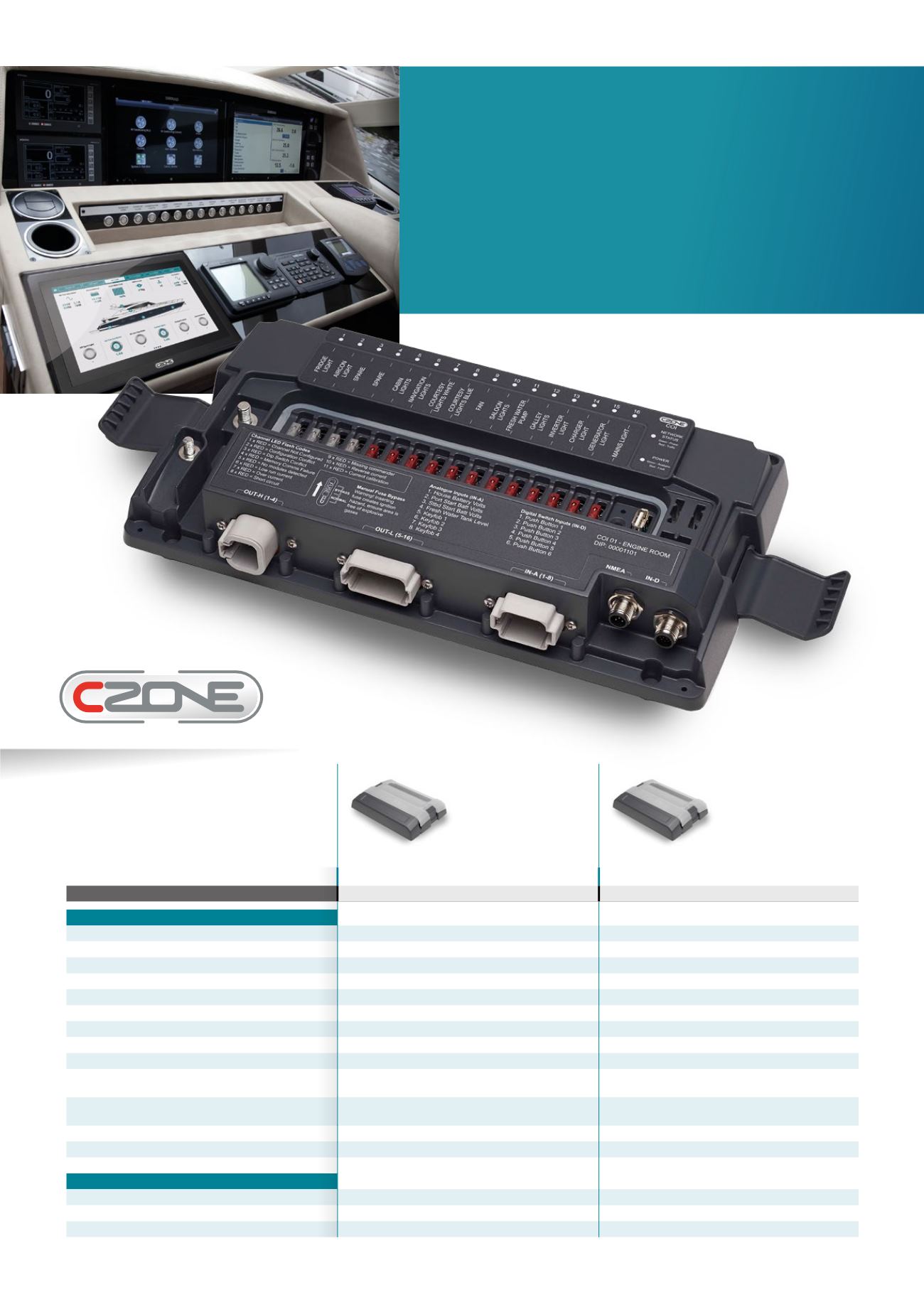

COI with connectors
COI without connectors
Product code
80-911-0119-00
80-911-0120-00
GENERAL SPECIFICATIONS
Push button inputs
6, via breakout harness
6, via breakout harness
Output channels (high)
4 x 25 A
4 x 25 A
Power supply
M8 (5/16”) stud positive, M6 (1/4”) stud negative
M8 (5/16”) stud positive, M6 (1/4”) stud negative
Output channels (low)
12 x 10 A (dimmable)
12 x 10 A (dimmable)
Analogue inputs
8 (positive or negative switching, 0-32 V)
8 (positive or negative switching, 0-32 V)
Voltage
9-32 V (with power available LED and voltage monitoring)
9-32 V (with power available LED and voltage monitoring)
Channels
30
30
Communication protocol
NMEA2000
NMEA2000
Max. current
150 A
150 A
Dimensions (incl. optional cable cover), hxwxd
338 x 235 x 62 mm
13.3 x 9.3 x 2.4 inch
338 x 235 x 62 mm
13.3 x 9.3 x 2.4 inch
Alarms
overcurrent, low run current, short circuit, tripped and
override
overcurrent, low run current, short circuit, tripped and
override
Protection degree
IPX5 (mounted at 0 °C +/-90 °C)
IPX5 (mounted at 0 °C +/-90 °C)
Approvals
CE, ABYC, NMEA
CE, ABYC, NMEA
TECHNICAL SPECIFICATIONS
NMEA2000 PGN output
fluid level, pressure, temperature, battery voltage
fluid level, pressure, temperature, battery voltage
Circuit bypass/override
mechanical protection/bypass on all output channels
mechanical protection/bypass on all output channels
Circuit breakers
configurable electronic fuse + ATC fuse
configurable electronic fuse + ATC fuse
Specifications
Combination Output
Interface (COI)
